image filtering

COS 351 - Computer Vision

three views of filtering

1. image filters in spatial domain
   • filter is a mathematical operation of a grid of numbers
   • smoothing, sharpening, measuring texture
2. image filters in the frequency domain
   • filtering is a way to modify the frequencies of images
   • denoising, sampling, image compression
3. templates and image pyramids
   • filtering is a way to match a template to the image
   • detection, coarse-to-fine registration

image filtering

Image filtering: compute function of local neighborhood at each position

Really important!

• Enhance images
  • denoise, resize, increase contrast, etc.
• Extract information from images
  • texture, edges, distinctive points, etc.
• Detect patterns
  • template matching

example: box filter

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

image filtering

\[h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\]

box filter

What does it do?

• Replaces each pixel with an average of its neighborhood
• Achieves smoothing effect (remove sharp features)

smoothing with box filter

practice with linear filters

practice with linear filters

practice with linear filters

practice with linear filters

practice with linear filters

practice with linear filters

sharpening

Sharpening filter accentuates differences with local average

other filters: sobel

Sobel filter finds vertical and horizontal edges

other filters: sobel

Sobel filter finds vertical and horizontal edges

filtering vs. convolution

With kernel g and image f

2D filtering

• h = filter2(g, f); or h = imfilter(f, g);
• \(h[m,n] = \sum_{k,l} g[k,l]\ \ f[m+k,n+l]\)

2D convolution

• h = conv2(g, f);
• \(h[m,n] = \sum_{k,l} g[k,l]\ \ f[m-k,n-l]\)

key properties of linear filters

• Linearity
  • filter(f1 + f2) = filter(f1) + filter(f2)
• Shift invariance
  • same behavior regardless of pixel location
  • filter(shift(f)) = shift(filter(f))

Any linear, shift-invariant operator can be represented as a convolution

key properties of linear filters

• Commutative: \(a * b = b * a\)
  • conceptually no difference between filter and signal
  • but particular filtering implementations might break this equality
• Associative: \(a * (b * c) = (a * b) * c\)
  • often apply several filters one after another: \((((a * b_1) * b_2) * b_3)\)
  • this is equivalent to applying one filter: \(a * (b_1 * b_2 * b_3)\)
• Distributes over addition: \(a * (b + c) = (a * b) + (a * c)\)
• Scalars factor out: \(ka * b = a * kb = k(a * b)\)
• Identity: unit impulse \(e = [0,0,1,0,0]\), \(a * e = a\)

important filter: gaussian

Weight contributions of neighboring pixels by nearness

smoothing with box filter

smoothing with Gaussian filter

gaussian filters

• remove "high-frequency" components from the image (low-pass filter)
  • image becomes more smooth
• convolution with self is another gaussian
  • so can smooth with small-width kernel, repeat, and get same result as larger-width kernel would have
  • convolving two times with Gaussian kernel of width \(\sigma\) is same as convolving once with kernel of width \(\sigma\sqrt{2}\)
• Separable kernel
  • factors into product of two 1D Gaussians

separability of the gaussian filter

\[ \begin{array}{rl} G_\sigma(x,y) & = \frac{1}{2\pi\sigma^2} e^{-\frac{(x^2+y^2)}{2\sigma^2}} \\ & = \left( \frac{1}{\sigma\sqrt{2\pi}} e^{-\frac{x^2}{2\sigma^2}} \right) \left( \frac{1}{\sigma\sqrt{2\pi}} e^{-\frac{y^2}{2\sigma^2}} \right) \end{array} \]

The 2D Gaussian can be expressed as the product of two functions, one a function of \(x\) and the other a function of \(y\).

In this case, the two functions are the (identical) 1D Gaussian.

separability example

2D convolution (center location only)

separability example

2D convolution (center location only)

2D filter factors into a product of 1D filters

separability example

2D convolution (center location only)

separability example

2D convolution (center location only)

Perform convolution along rows...

... then along remaining column.

separability

Why is separability useful in practice?

separability

Why is separability useful in practice?

Because it is faster!

• Filtering an \(M\)-by-\(N\) image with a \(P\)-by-\(Q\) filter requires roughly \(MNPQ\) multiplies and adds.
• If the kernel is separable, filtering can be done in two steps
  1. first step requires \(MNP\) multiplies and adds
  2. second step requires \(MNQ\) multiplies and adds
• In total, filtering requires \(MN(P+Q)\) multiplies and adds, which is a \(PQ/(P+Q)\) speed-up.

practical matters

• How big should the filter be?
  • Values at edges should be near zero
  • Rule of thumb for Gaussian: set filter half-width to about \(3\sigma\)

practical matters

• What about near the edge?
  • the filter window falls off the edge of the image
  • need to extrapolate
  • methods:
    • clip filter (black)
    • wrap around
    • copy edge
    • reflect across edge

practical matters

• What about near the edge?
  • MATLAB code below

imfilter(f, g, 0);            % clip filter (black)
imfilter(f, g, 'circular');   % wrap around
imfilter(f, g, 'replicate');  % copy edge
imfilter(f, g, 'symmetric');  % reflect across edge

practical matters

• What about near the edge?
  • MATLAB code below

imfilter(f, g, 0);            % clip filter (black)
imfilter(f, g, 'circular');   % wrap around
imfilter(f, g, 'replicate');  % copy edge
imfilter(f, g, 'symmetric');  % reflect across edge

practical matters

• What about near the edge?
  • MATLAB code below

imfilter(f, g, 0);            % clip filter (black)
imfilter(f, g, 'circular');   % wrap around
imfilter(f, g, 'replicate');  % copy edge
imfilter(f, g, 'symmetric');  % reflect across edge

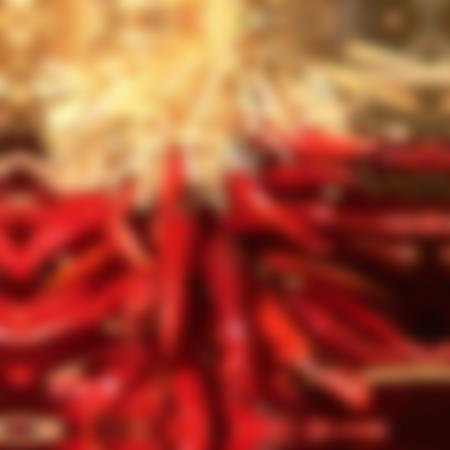

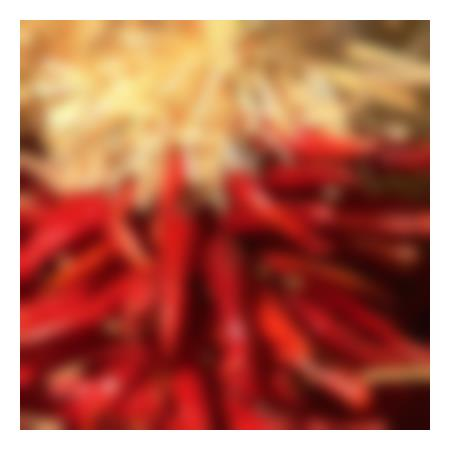

practical matters

• What about near the edge?
  • MATLAB code below

imfilter(f, g, 0);            % clip filter (black)
imfilter(f, g, 'circular');   % wrap around
imfilter(f, g, 'replicate');  % copy edge
imfilter(f, g, 'symmetric');  % reflect across edge

practical matters

• What is the size of the output?
  • MATLAB code below

filter2(g, f, 'full');   % sum of sizes of f and g
filter2(g, f, 'same');   % same as f
filter2(g, f, 'valid');  % difference of sizes of f and g

median filters

• A median filter operates over a window by selecting the median intensity in the window
• What advantage does a median filter have over a mean filter?
• Is a median filter a kind of convolution?

comparison: salt and pepper noise

assign01: hybrid images

Hybrid Images. A. Oliva, A. Torralba, P.G. Schyns. SIGGRAPH 2006

top filter: Gaussian bottom filter: Laplacian

take-home messages

• Linear filtering is sum of dot product at each position
  • can smooth, sharpen, translate (among many other uses)
• Be aware of details for filter size, extrapolation, cropping

practice questions

• Write down a 3x3 filter that returns a positive value if the average value of the 4-adjacent neighbors is less than the center and a negative value otherwise.

• Write down a filter that will compute the gradient in the x-direction:

  • gradx(y,x) = im(y,x+1)-im(y,x) for each x,y

practice questions

Fill in the blanks, where * is filtering operator _ = D * B A = _ * _ F = D * _ _ = D * D

Laplacian of Gaussian

\[G_\sigma = \frac{1}{2\pi\sigma^2} e^{-\frac{(x^2+y^2)}{2\sigma^2}}\]

\[ LoG_\sigma(x,y) = - \frac{1}{\pi\sigma^4} \left( 1 - \frac{x^2+y^2}{2\sigma^2} \right) e^{-\frac{x^2+y^2}{2\sigma^2}}\]
